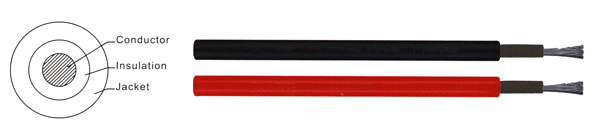

PV Cable

Alpha Products, Inc. 351 Irving Drive, Oxnard, CA 83030, USA
Tel: 805-981-8666 / Fax: 805-988-6555 /
Contact Us

We offer a full range of wire and cable, splices, and cable assemblies. If you need other wire or cable products please contact us with your requirements.

Part Number

AWG

Conductor

Jacket O.D.
(mm)/Color

Construction

Size

O.D.

3SO/W10R

10

105/0.254

0.254 sq.mm

3.1 mm

7.0 mm / red

3SO/W10B

7.0 mm / black

3SO/W12R

12

41/0.320

0.320 sq.mm

2.4 mm

6.5 mm / red

3SO/W12B

6.5 mm / black

3SO/W14R

14

41/0.254

0.254 sq.mm

2.0 mm

5.9 mm / red

3SO/W14B

5.9 mm / black

Specifications

 Rated voltage

 600V AC

 Conductor resistance

 10 AWG: 3.546 Ω/km, 12 AWG: 5.64 Ω/km, 14 AWG: 8.96 Ω/km @200C

 Dielectric strength

 3 KV / 1 minute

 Insulation resistance

 600V AC for 12 weeks in tap water @900C

 Conductor material

 Tinned copper

 Insulation

 XLPE

 Jacket material

 XLPE (-400C to +1250C), UL approved

 Bending radius

 > 4x cable O.D. (fixed installation)
